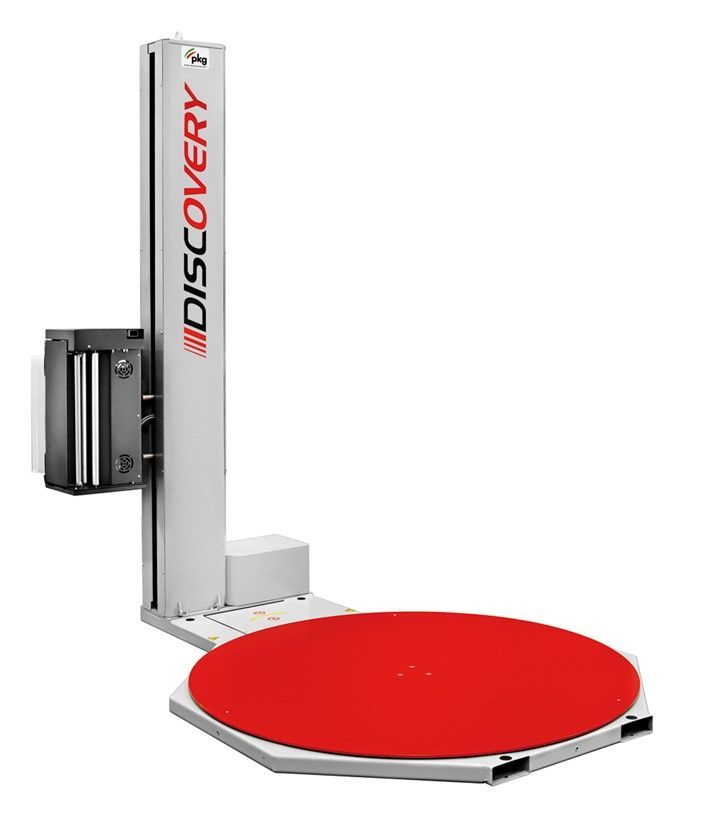

Discovery
SEMI-AUTOMATIC STRETCH MACHINE
Operational Features
- Film savings thanks to pre-stretch system
- Problematic packaged goods
- Unstable pallet loads
- Oversized and / or extremely high packaged goods
- Versatile applications due to various optional extras
- Windows, doors, slatted frames or similar products
- Food / pharmaceutical industry (stainless steel version)
- Corrosion-sensitive environment (galvanised version with special paint)
- Pallet weight determination (scales)
- Packaging lines (roller turntable)
- Heavy packaged goods (stretch cord system)
- Sensitive packaged goods (bubble wrap / stretch wrap)
- Packaged goods requiring air-conditioning (strip stretch system)
- Freezers and cold rooms
- Robust steel construction of the machine frame
- Soft start and soft stop
- Photocell for pallet height detection and stretch control

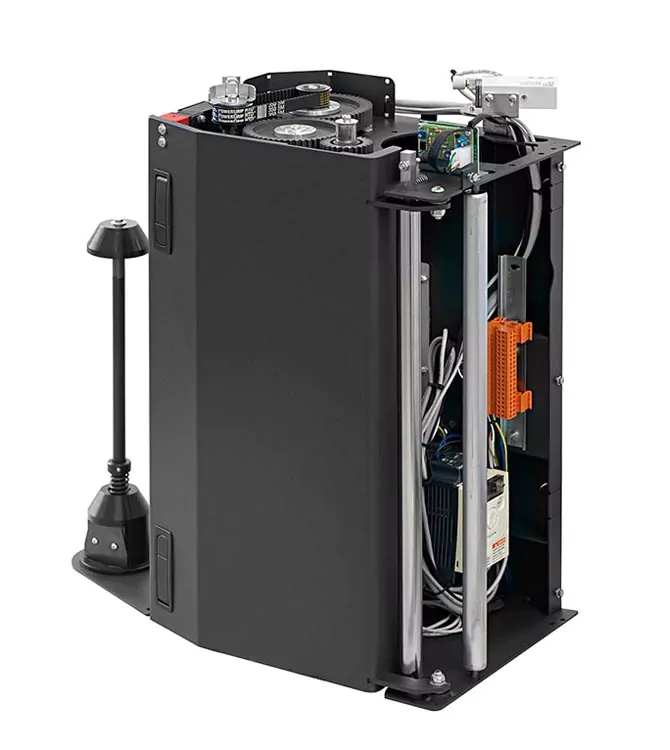

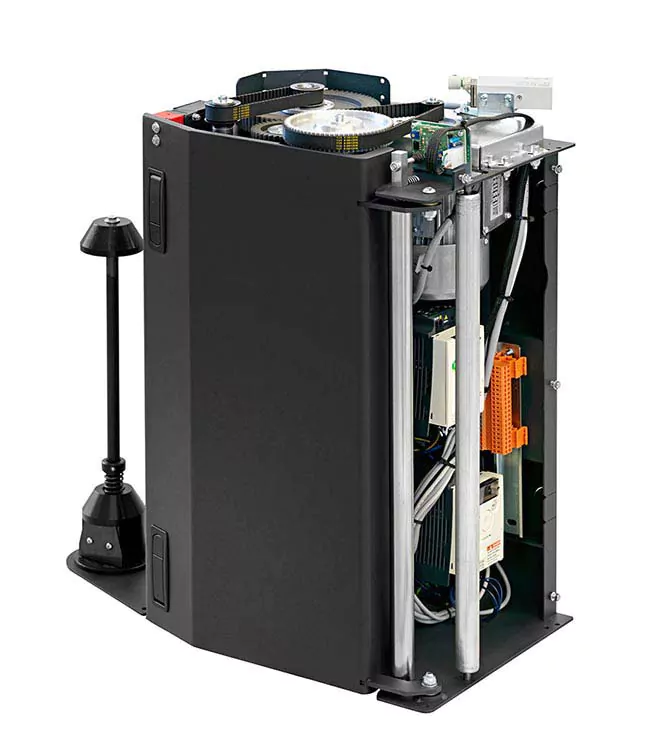

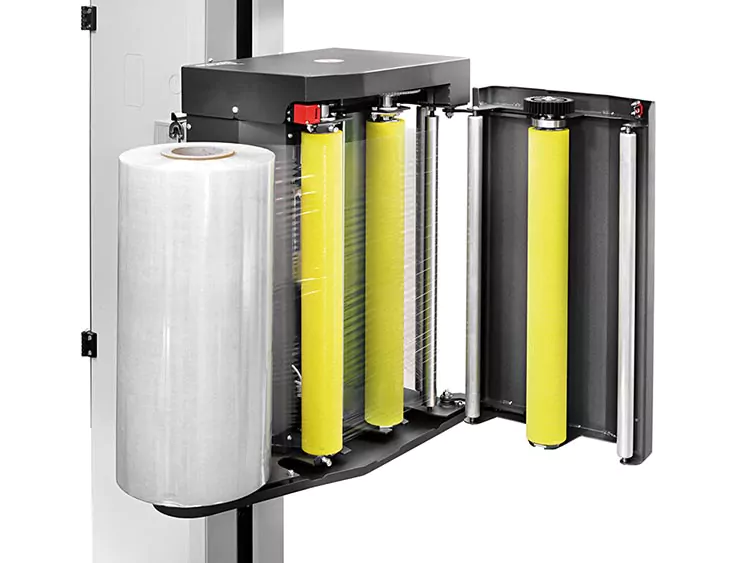

- Quick threading system of the stretch film (MPS only)

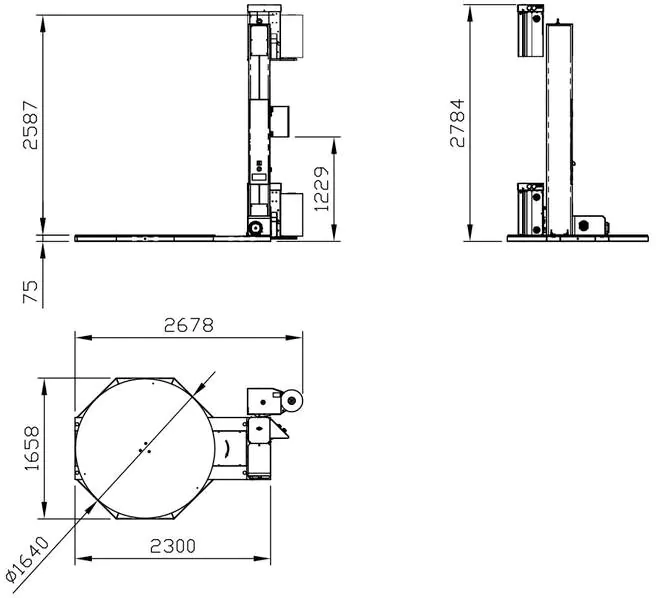

TECHNICAL SPECIFICATIONS
Technical specifications | Discovery |
---|---|
Turntable diameter | 1,500 mm (optional: 1,650 mm, 1,800 mm, 2,200 mm, 2,400 mm, 2,600 mm) |
Max. pallet dimensions | Up to 1,000 x 1,200 mm (optional: bis 1,700 x 1,700 mm) |
Max. turntable speed | 3 – 12 revolutions / min |
Load capacity | 2,000 kg |
Electr. connection | 230 V, 50 Hz |
Machine weight | Approx. 450 kg |
Machine performance | Approx. 20 pallettes / h |
Max. wrapping height | 2,450 mm (optional 2,200 mm, 2,700 mm, 3,200 mm, 3,500 mm, 3,900 mm) |
Foil type | Machine stretch film |
Roll diameter | Max. 250 mm |
Roll height | 500 mm |
Roll weight | ~20 kg |
Safety features
- Emergency stop button on the control panel
- Acoustic signal at start and stop
- Film slide with safety mechanism (stops when hitting a resistance during downward movement)
- Safety switch of the insertion opening when the turntable is recessed (optional)
Special equipment and accessories

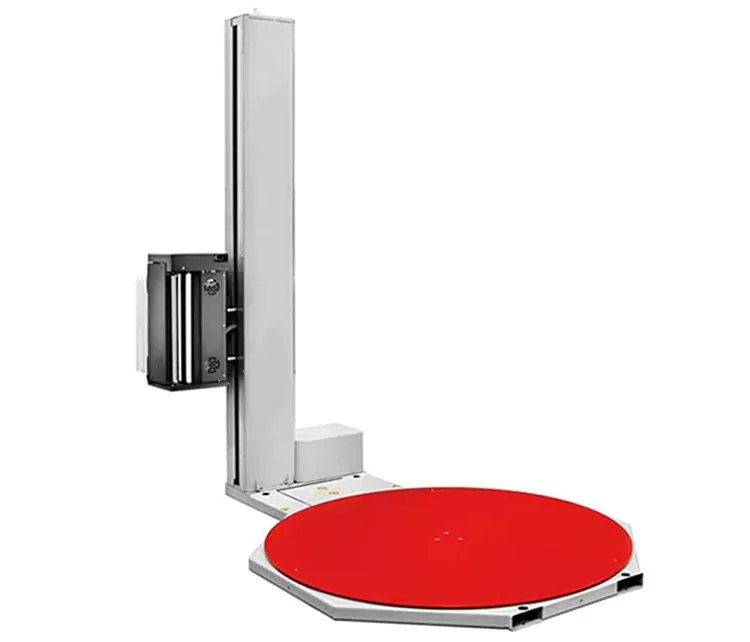

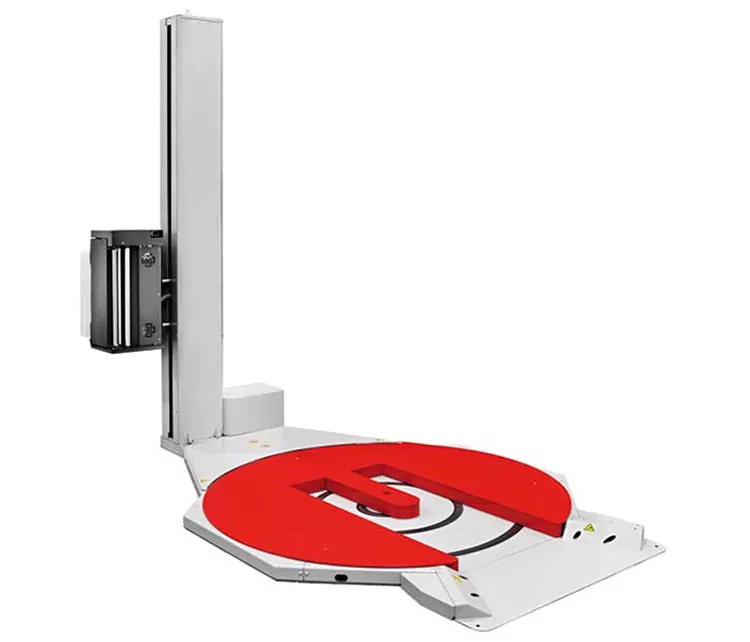

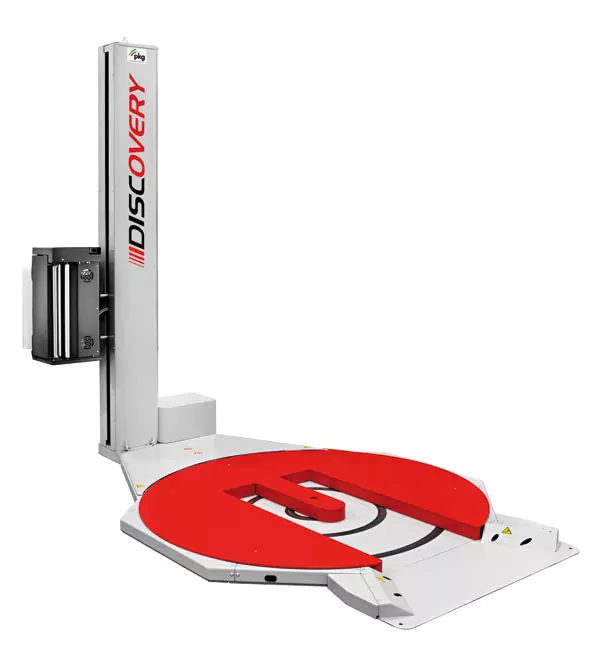

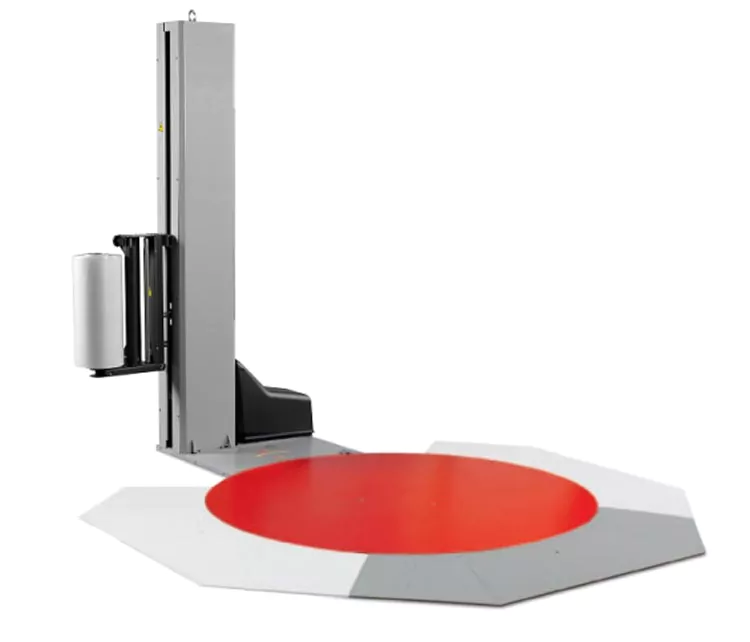

- Recessed turntable / flat turntable (load capacity: 1,200 kg, Ø 1,650 mm + 1,800 mm) optionally as frontal, right-hand or left-hand version (can be changed at a later date)
- Stainless steel version: For operation in hygienic areas or corrosive environments
- Galvanised version with special lacquer: For operation in corrosive environments or where metal parts are subjected to heavy loads

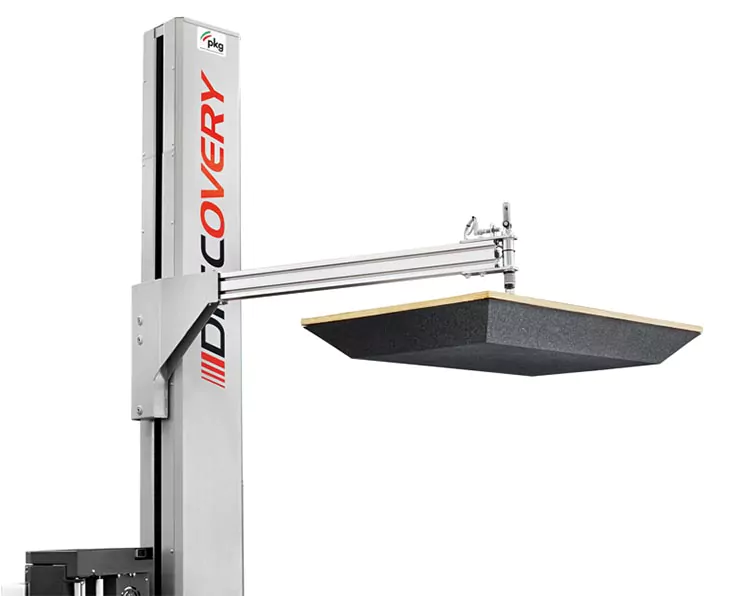

- Pressure pad (round + rectangular)

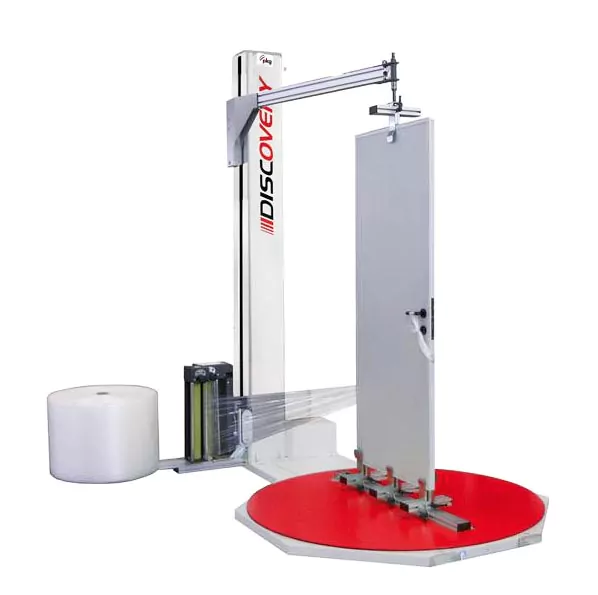

- Special pressure pads for windows, doors, slatted frames or similar products

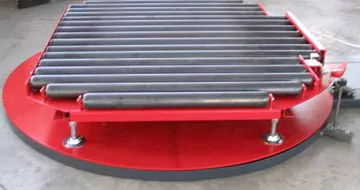

- Turntable with drive-free conveyor rollers (locked)

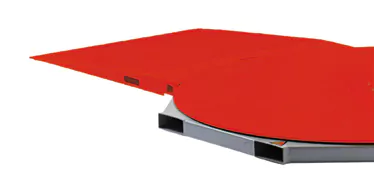

- Ramp for forklift

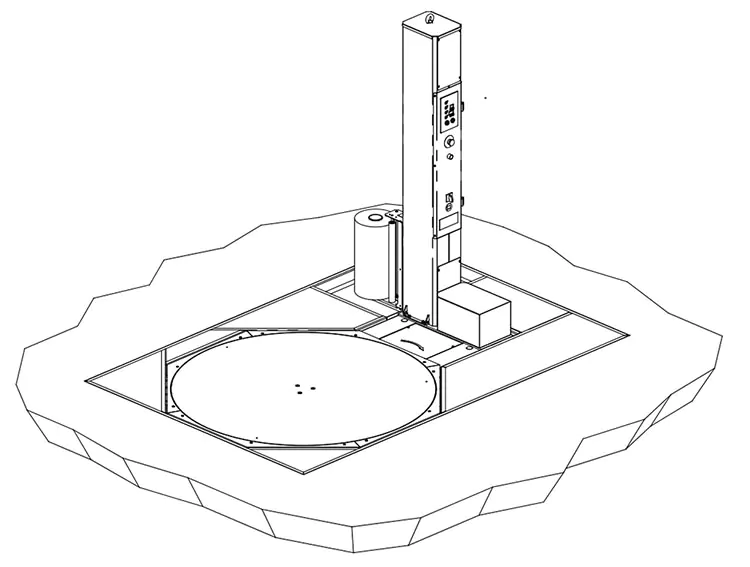

- Countersinking frame (turntable flush with floor)

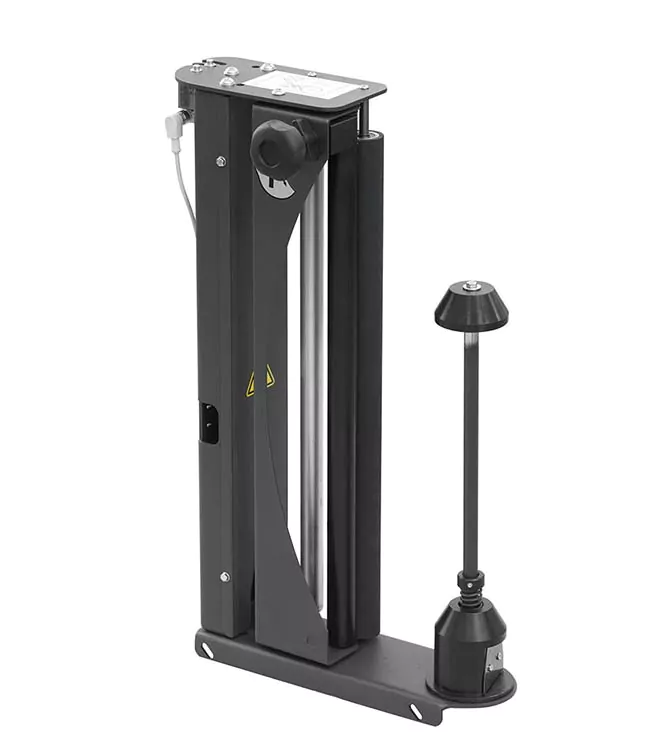

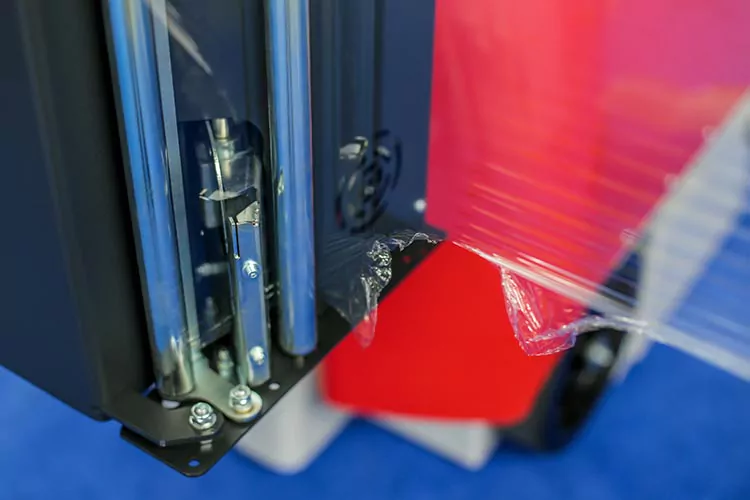

- Automatic film cut at the end of the wrapping cycle (not with 10 MB)
- Mast offset 500 mm for protruding packaged goods

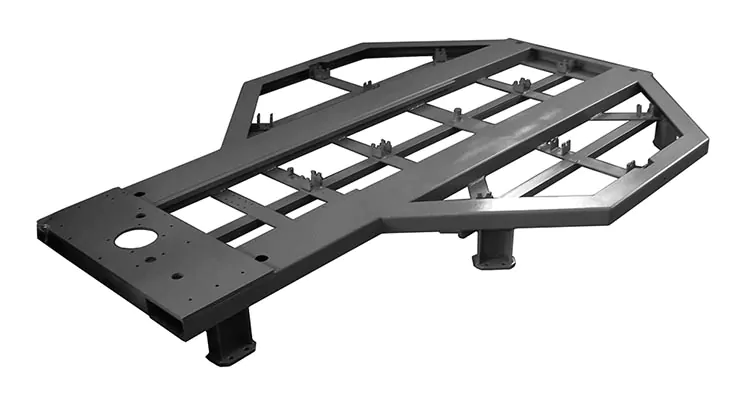

- Elevation frame with support feet (12 cm)
- Remote control for starting the stretching process
- Freezer and cold room equipment
- Integrated scales

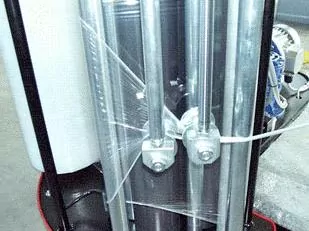

- Stretch cord system
- Bubble wrap feeding system
- Strip stretch system (can be switched on as required) for air-permeable packaging - Climate-controlled packaging
- Holder for packaged goods in roll format
- Photocell for black detection

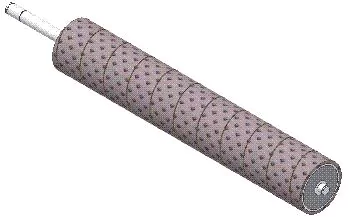

- Guide roller for net foil
- Holder for Ø 50 mm core
- Holder for coreless rolls
- Film compression system (manual)
- Wifi network connection
- Custom-made designs on request

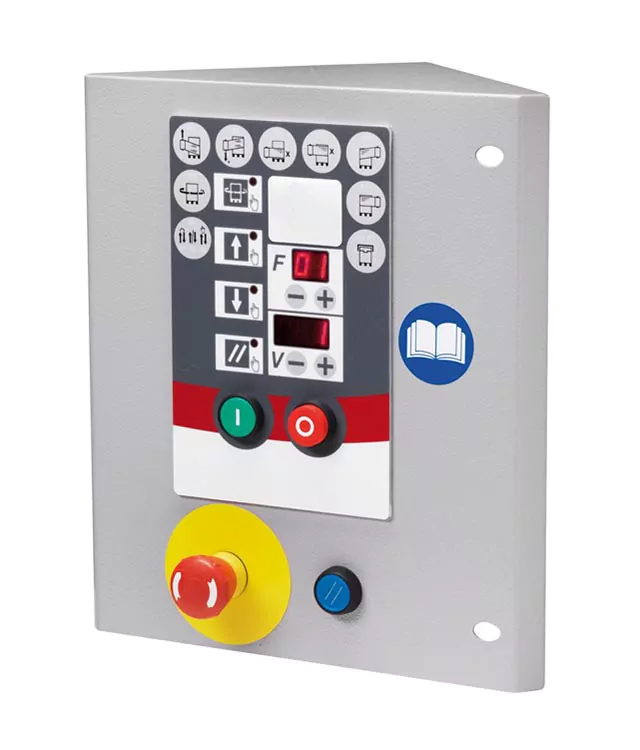

control panel
Adjustable parameters on the operator panel | Discovery |
---|---|
User-specific programmes | 99 |
Spiral winding (up only or down only) | ✓ |
Cross winding (up and down) | ✓ |
Cover sheet support (rainproof) | ✓ |
Stretch without photocell function (default height) | ✓ |
Ascent and descent speed of the film carriage | ✓ |
Number of foot and head windings | ✓ |
Speed of the turntable | ✓ |
Feeding tension separately adjustable | bottom / up / top / down |
Pre-stretching separately adjustable (only with 100 MPS 2) | bottom / up / top / down |
Foil overlap at the top of the pallet | ✓ |
Identical start and stop position | ✓ |
Weight determination of the used film (only for 100 MPS 2) | ✓ |
Foil cut (optional; not available with 10 MB) | ✓ |
Gradual ascent of the film carriage after each revolution | ✓ |
Edge protector lay-on option | ✓ |
Key lock | ✓ |
Reinforcement windings in individual height | ✓ |
WIFI network connection | optional |
Foil lay-on comfort function (carriage moves to a comfortable height at the end for cutting off / relapping) | ✓ |
Start and stop at specified heights | ✓ |
Programme lock | ✓ |
