TCM105-C

Trolley Vacuum Chamber Sealer

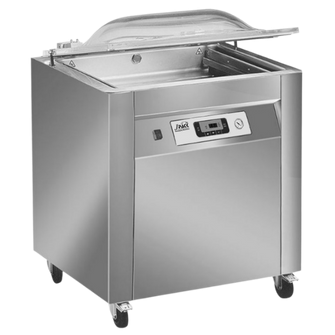

J Pack TCM105-C Vacuum Chamber

The TCM105-C is a trolley-mounted vacuum chamber sealer capable of combining multiple sealing bars for maximum productivity. With its 60 m³/h pump and vacuum and marinating functions, it is the ideal solution for restaurants, supermarkets, small delis and butcher shops. Also available as a gas version.

TECHNICAL SPECIFICATIONS

Technical specifications	TCM105-C
Dimensions	840 mm x 730 mm x 1,050 mm
Weight	180 kg
Chamber dimensions	720 mm x 570 mm x 230 mm
Sealing bar	2x 550 mm
Additional sealing bars (optional)	•
Gas (Optional)	•
Vacuum pump	60 m³/h
Consumption	2 kW
Power supply	380 V / 50 - 60 Hz
Technical features	Automatic cycle for vacuum and sealing, electronic airsoft function, marinating function, pump preheating, cycle counter, air return with solenoid valve, easy cleaning - removable sealing strips, optional gas

areas of application

Meat

Packaging of all kinds of meat.
Button
Fish

Preservation and packaging of all fish industry products.
Button
Vegetables

Packing of fresh and cooked vegetables.
Button
Fruit

Sealing of dried and fresh fruit.
Button
Cheese

Sealing of fresh, aged and creamy cheeses.
Button
Large-Scale Catering

Sealing of ready meals for large-scale food consumption.
Button
Deli Stores

Sealing of ready meals.
Button
Pasta

Packaging of fresh, filled, dry and pre-cooked pasta.
Button
Miscellaneous

Packaging of a wide array of products.
Button
Liquids

Special sealing of thick or liquid food.
