TSS112
Semi-automatic pneumatic thermosealer
with Die-Cut

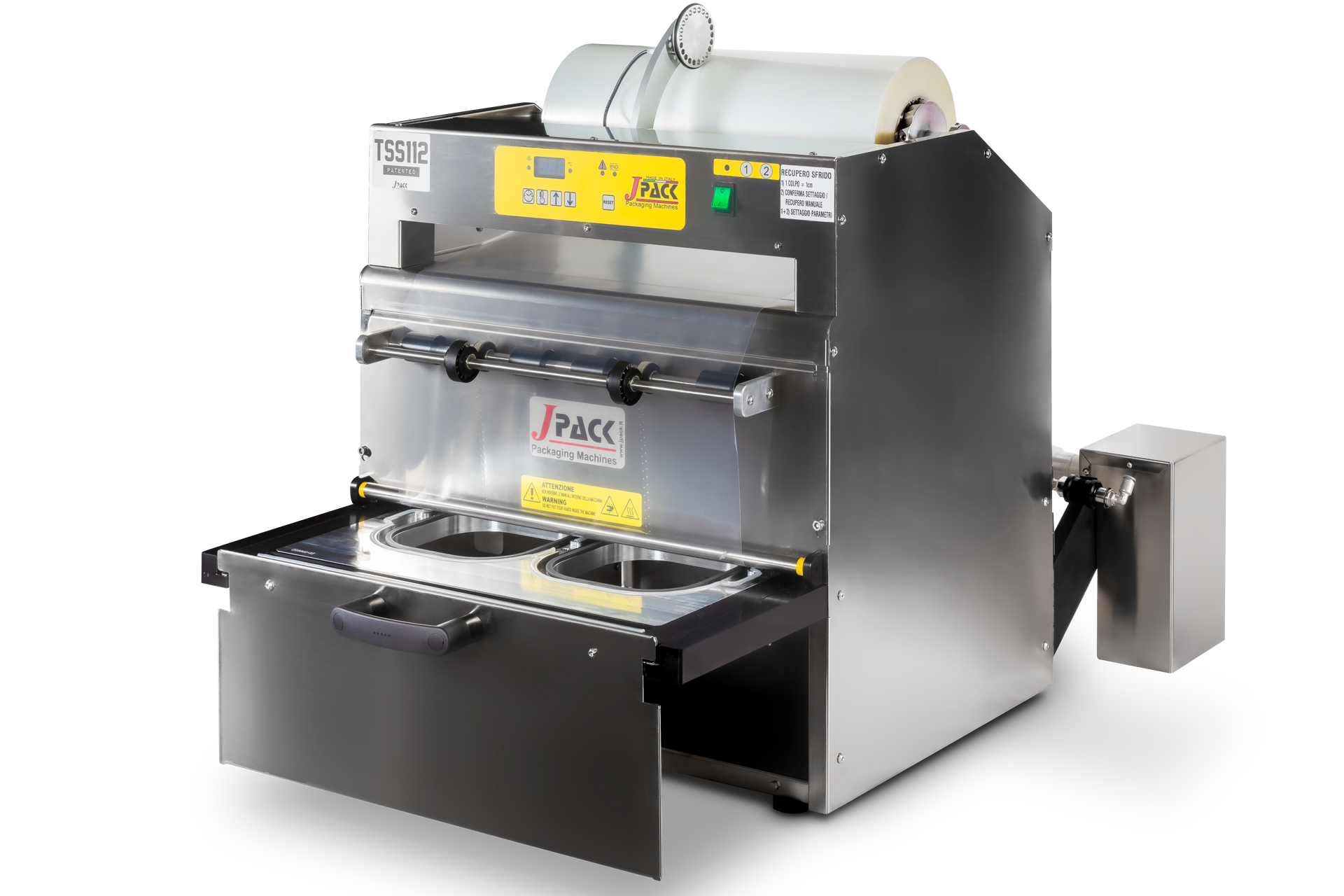

J Pack TSS112 Thermosealer
The pneumatic table tray sealer TSS112 is a compact machine with a wide sealing plate and allows the film to be cut around the edge of the tray. The end result is a sealed tray with an excellent aesthetic finish, perfect for supermarket shelves. The optional gas flushing helps maintain the freshness of the product.
TECHNICAL SPECIFICATIONS
| Technical specifications | TSS112 |
|---|---|
| Dimensions | 560 mm x 580 mm x 510 mm |
| Weight | 65 kg |
| Max. tray size | 420 mm x 280 mm x 175 mm |
| Max. reel width and diameter | L= 450 / Ø 250 mm |
| Feeding | Pneumatic |
| Tray loading and handling | Manual + Pneumatic |
| Mould | Fixed with die-cut |
| Mould change | • |
| Customisable mould | • |
| Automatic film unwinding | • |
| Acoustic end-of-cycle buzzer | • |
| Partial and total cycle counter | • |
| Cycles per minute | 3 - 8 |
| Custom digital sealing programmes | 9 |
| Power supply | 220 V / min. 1500 W - max. 2500 W |
areas of application
