TSS105-R
Semi-automatic electric thermosealer

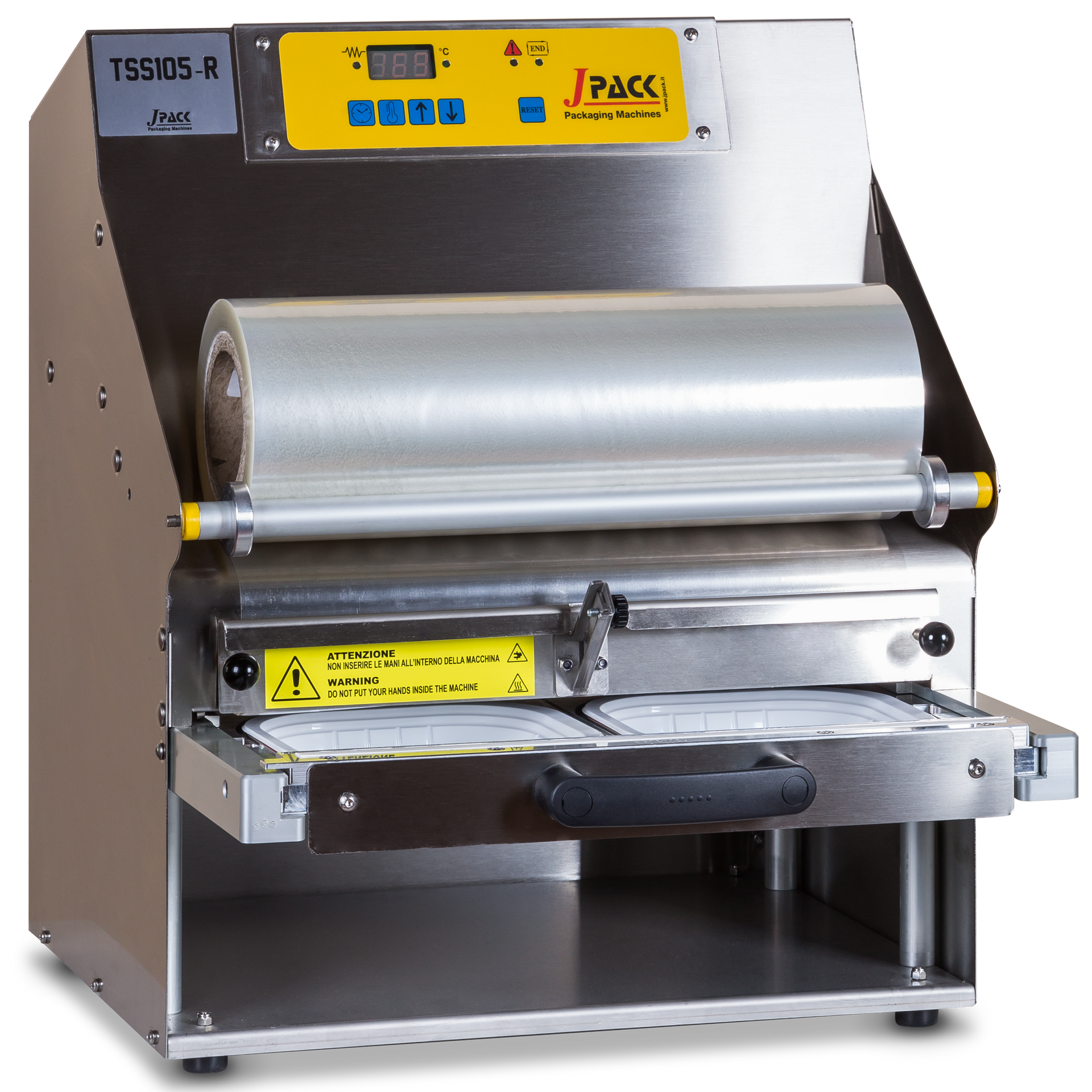

J Pack TSS105-R Thermosealer
Thanks to its compact dimensions and quick mould change, it is the ideal solution for small delis and supermarkets. The machine can be fitted with the patented INFINITY modular J Pack mould or with customised moulds. The large sealing surface allows the sealing of large trays up to ½ GN. Optionally also available with gas flushing.
TECHNICAL SPECIFICATIONS
| Technical specifications | TSS105-R |
|---|---|
| Dimensions | 460 mm x 510 mm x 555 mm |
| Weight | 35 kg |
| Max. tray size | 370 mm x 280 mm x 155 mm |
| Max. reel width and diameter | L= 380 / Ø 200 mm |
| Feeding | Electric |
| Tray loading and handling | Manual + Electric |
| Mould | Infinity / Fixed, no die-cut |
| Mould change | • |
| Customisable mould | • |
| Automatic film unwinding | • |
| Acoustic end-of-cycle buzzer | • |
| Partial and total cycle counter | • |
| Cycles per minute | 3 - 8 |
| Custom digital welding programmes | 9 |
| Power supply | 220 V / 1,500 W |
areas of application
