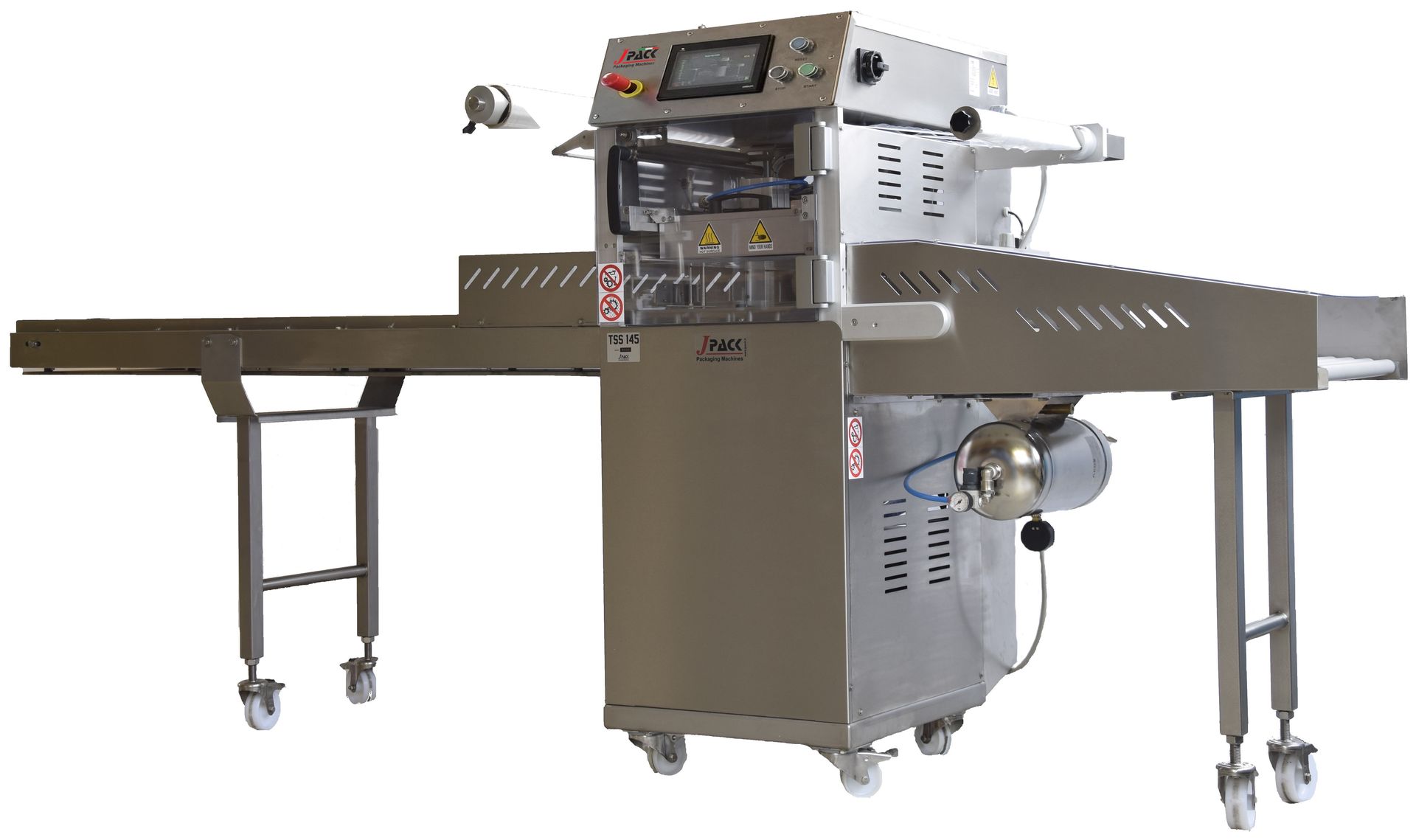

J Pack TSS145 Thermosealer


The TSS145 is an automatic in-line thermosealer with three loading positions and a brushless motor. The touchscreen features a practical and intuitive user interface designed to simplify and speed up sealing operations and ensure maximum product freshness.

TECHNICAL SPECIFICATIONS

Technical specifications TSS145
Dimensions 3,200 mm x 877 mm x 1,535 mm
Max. tray size 390 mm x 280 mm x 100 mm
Max. reel width and diameter L= 480 / Ø 240 mm
Feeding 8/10 bar / 26 NL/C (machine) / 1/3 bar (gas)
Tray loading and handling Automatic
Mould Fixed with die-cut
Mould change •
Customisable mould •
Automatic film unwinding •
Touchscreen •
MAP (Modified Atmosphere Packaging) protective atmosphere •
Partial and total cycle counter •
Cycles per minute 3 - 8
Custom digital welding programmes 10
Vacuum pump 63 m³/h Bush OIL / optional 100 m³/h external
Power supply 380 V / 50 Hz 3 P + N + T

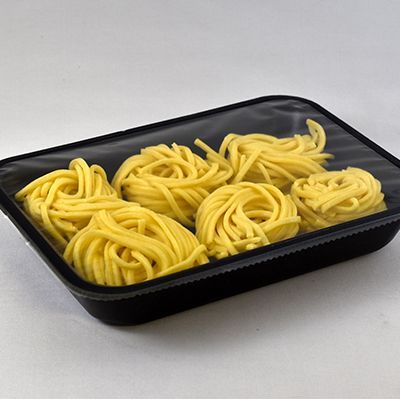

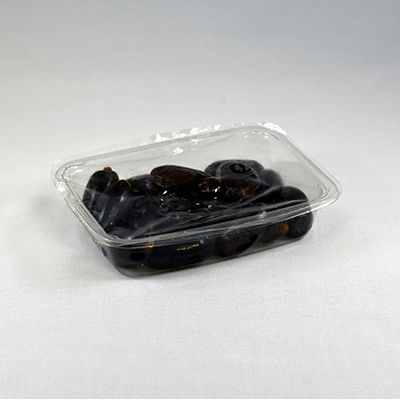

areas of application
