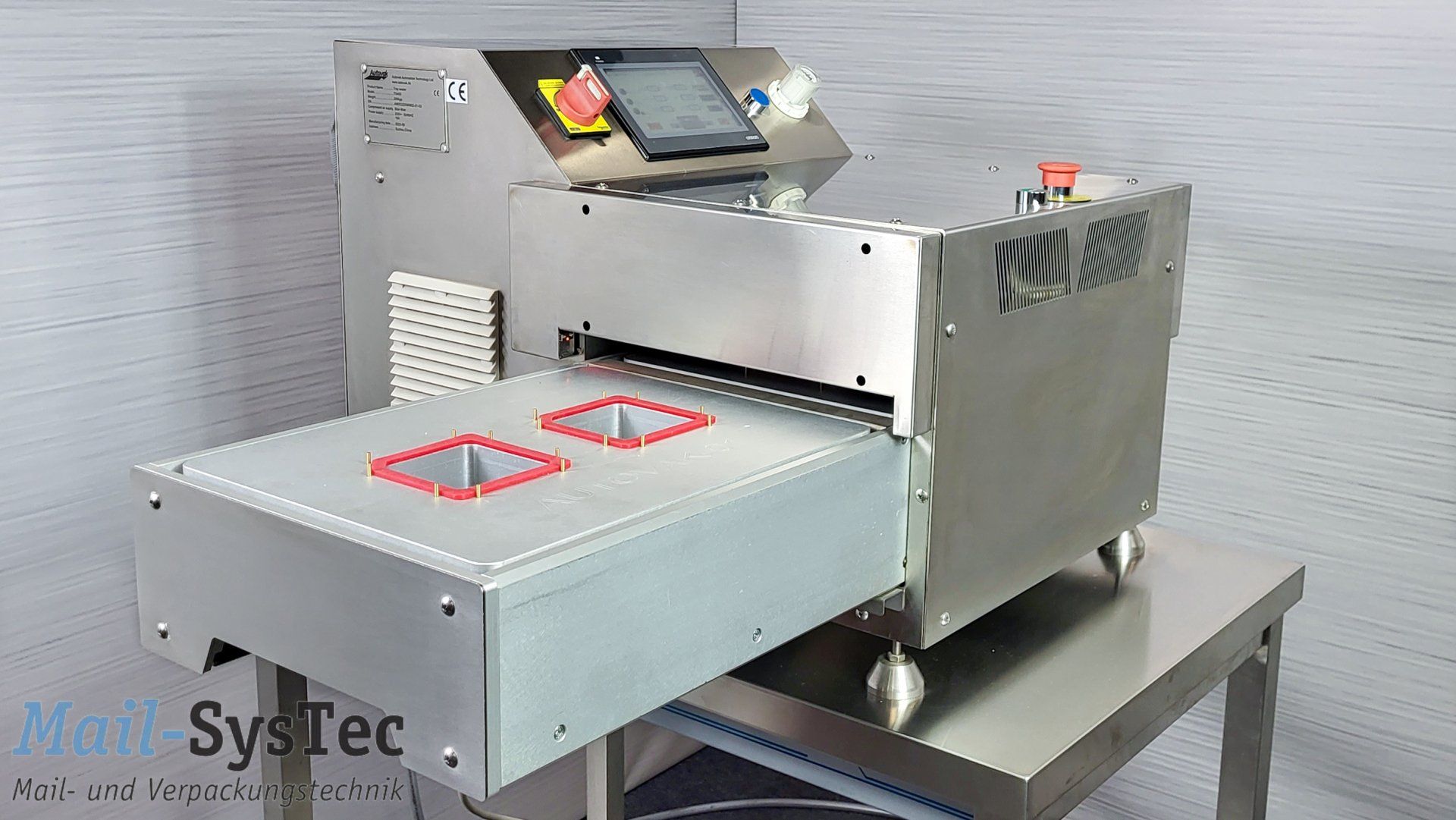

AUTOVAK TS400

Technical specifications


Manufacturer AUTOVAK
Model TS400
Function Heat sealing of blister boxes
Main material Stainless steel 304, aluminum alloy
Dimensions 1000 mm x 715 mm x 450 mm
Weight ca. 150 kg (excluding mould)
Power supply 220 V 50 / 60 Hz single-phase 3.5 kW
Compressed air supply Pressure 5 bar - 8 bar, approx. 18 L/min
Seal size 300 mm x 400 mm
Packing depth max. 100 mm
Production speed Up to 12 cycles/min depending on operator qualifications
Heat seal pressure 300 - 1500 kg adjustable
Equipment 2 tool kits
Suitable packaging material upon request
Condition like new (exhibitor model)
Price 14.500€

* Our prices are ex works plus VAT. Subject to prior sale.

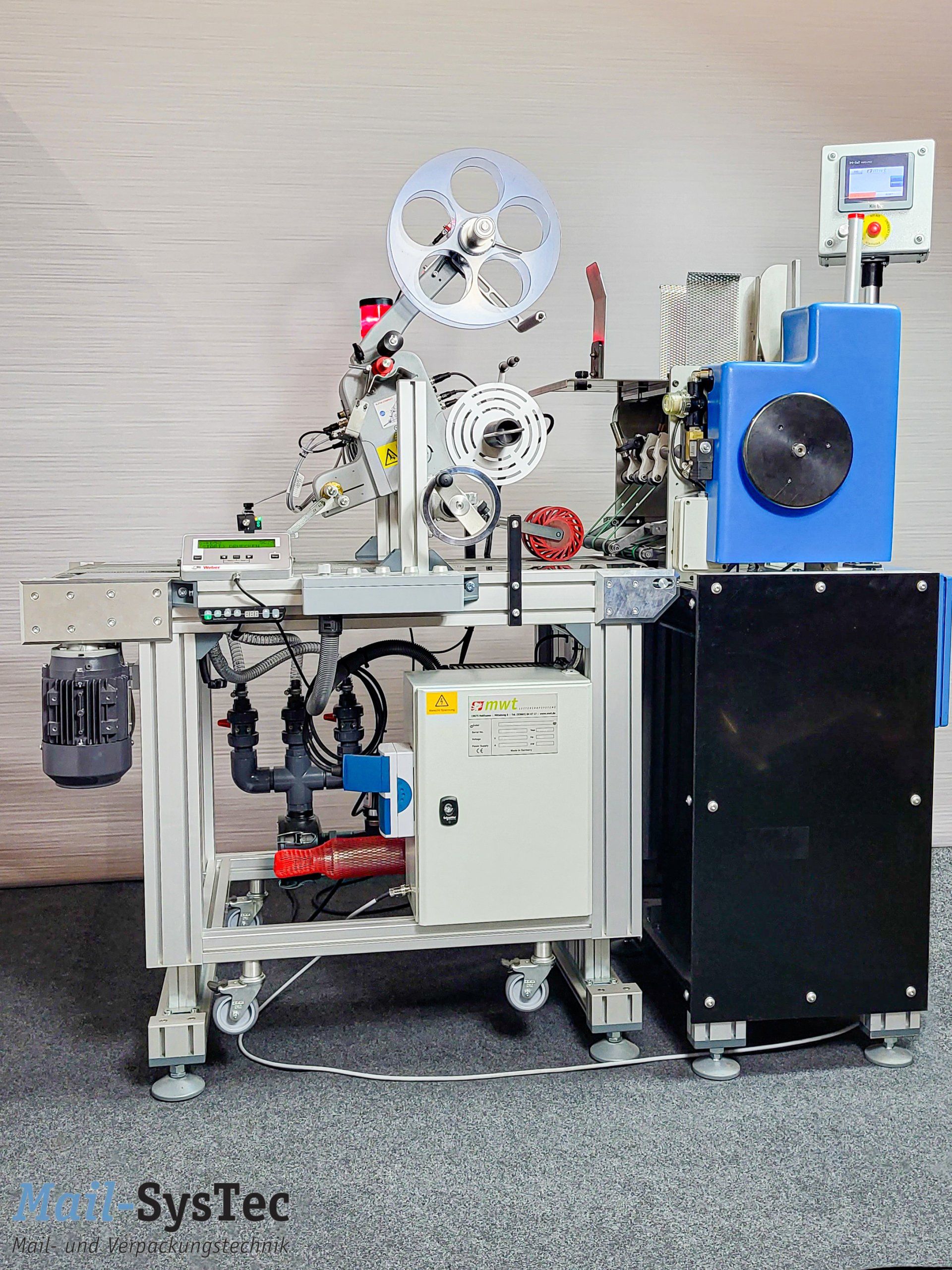

modules


  • Rotary feeder: CMC (year of construction 2002, overhauled)
  • Vacuum table: MWT Octovacu 100 (new)

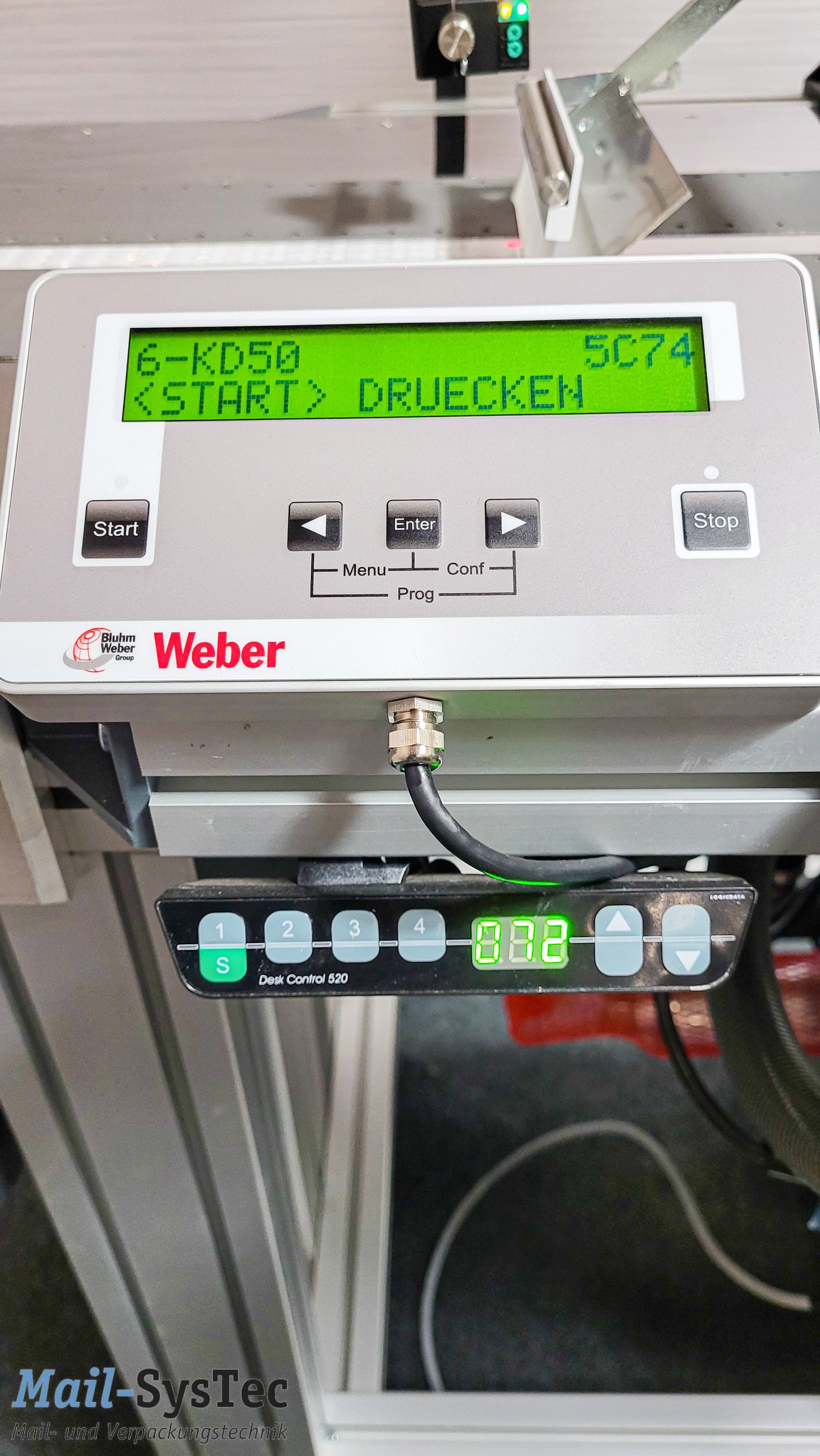

  • Labeler: BLUHM Alpha Compact (new)
  • Vacuum pump: BECKER T4.10 DV (new)
  • Basis & control: Mail-SysTec (new)

particularities


  • Processing of long products (up to 43 cm) possible through special programming and enlarged product feed
  • Customer-specific modifications possible (e.g. inkjet direct addressing)

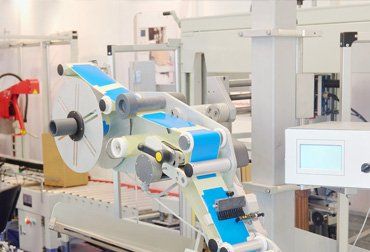

areas of application
