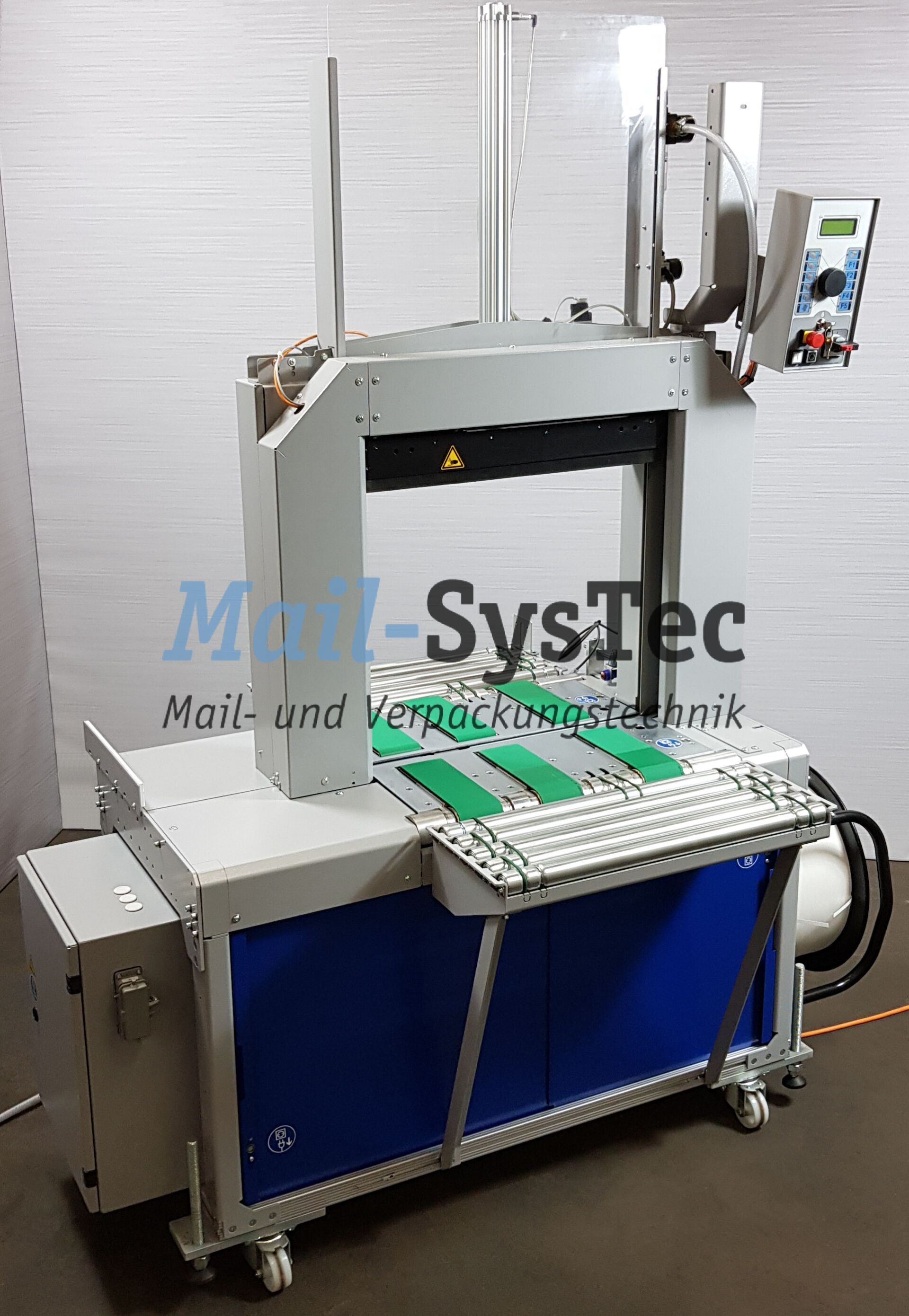

Strapping Machine
SMB ST1 600X600

Manufacturer SMB
Name ST1 600x600
Product size max. 600 x 505 mm
Construction year 2015
Condition overhauled
Mileage before overhaul 514.454
Mileage after overhaul < 1.000
Serial number 222A011532002
Price Unfortunately, this device has already been sold. Please ask us about alternatives.

Furnishing:


  • suction
  • band scanning
  • tape ejector
  • tape retraction, fully automatic
  • tape end detection with automatic
  • residual tape ejection
  • tape cutting knife
  • run-in and run-out timing, 40-pin, without connector
  • height adjustment of the feet (table height 775 - 900 mm)
  • mains cable (length 3 m), with plug
  • parcel weight max. 30 kg --> 50 kg
  • automatic strap tensioning dependent on package height
  • PC control with operating unit and display
  • signal processing via PLC control
  • infinitely adjustable recoil
  • quick bobbin changer
  • table tops, hinged
  • table belt drive, continuously adjustable (frequency converter.)
  • strapping width adjustable from 5 - 9 mm
  • wake-up from stand-by via external signal


Particularities:


  • Expansion to a packing line with several devices of a similar design possible!
  • Package press incl. double press (h=600 mm)
    (reduces the passage height from 600 mm to 505 mm)
  • Table extension 250 mm, powered
    (2 pieces each - attached to the ST1 on the inlet and outlet side)
  • Special programming of length scanning (Automatic switching of the strapping arrangement (single/parallel/multiple) - without additional light barrier)
  • Additional light barrier for attachment to the front or rear rail
  • Tape width 12mm
  • Brush strip for coil core 200/280 mm
  • Spool diameter core Ø 200 mm
    Operating language German
  • Mobile machine, table height 785 - 900 mm


Installment purchase with resale option:


This completely overhauled machine can be purchased in installments with a sell-back option. Our package includes:


  • Delivery and assembly of the machine at your location
  • Setting up the machine and instructing the operating personnel
  • Regular maintenance during the term
  • 12 month guarantee according to our guarantee conditions
  • The machine can be resold at pre-determined conditions during the entire contract period
  • Installment purchase for up to 36 months
* Our prices are ex works plus VAT. Subject to prior sale.
