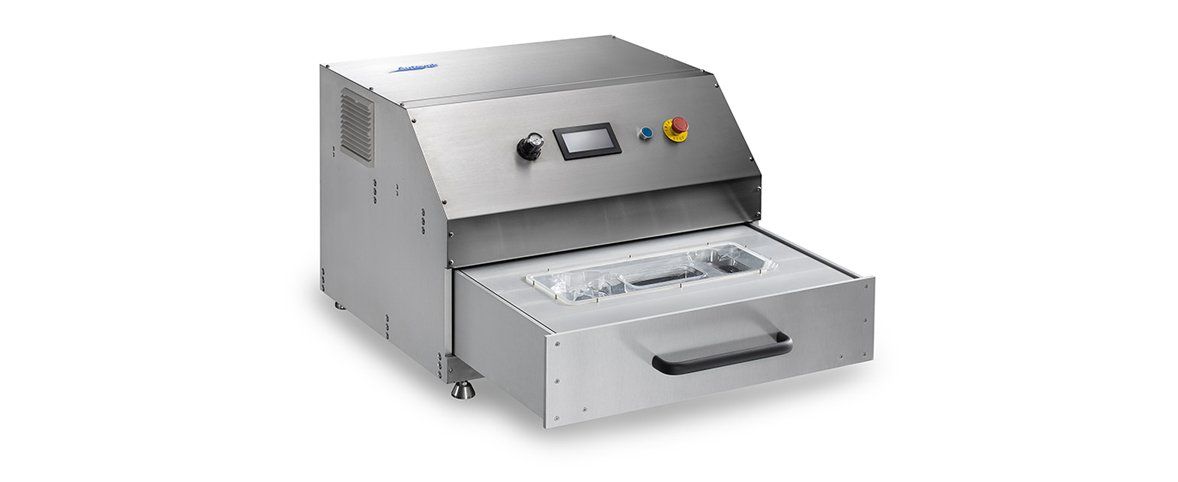

Table Sealing Machine
TS700
Technical specifications
| Manufacturer | AUTOVAK |
| Model | TS700 |
| Function | Heat sealing of blister boxes |
| Main material | Stainless steel 304, aluminum alloy |
| Dimensions | 1000 mm x 850 mm x 450 mm |
| Weight | ca. 150 kg (excluding mould) |
| Power supply | 220 V 50 / 60 Hz single-phase 2.4 kW |
| Compressed air supply | Pressure 5 bar - 8 bar, approx. 18 L/min |
| Seal size | 400 mm x 700 mm |
| Packing depth | max. 100 mm |
| Production speed | Up to 12 cycles/min depending on operator qualifications |
| Heat seal pressure | 0.1 - 0.6 Mpa adjustable |
| Price | on request >> |
* Our prices are ex works plus VAT. Subject to prior sale.
areas of application
