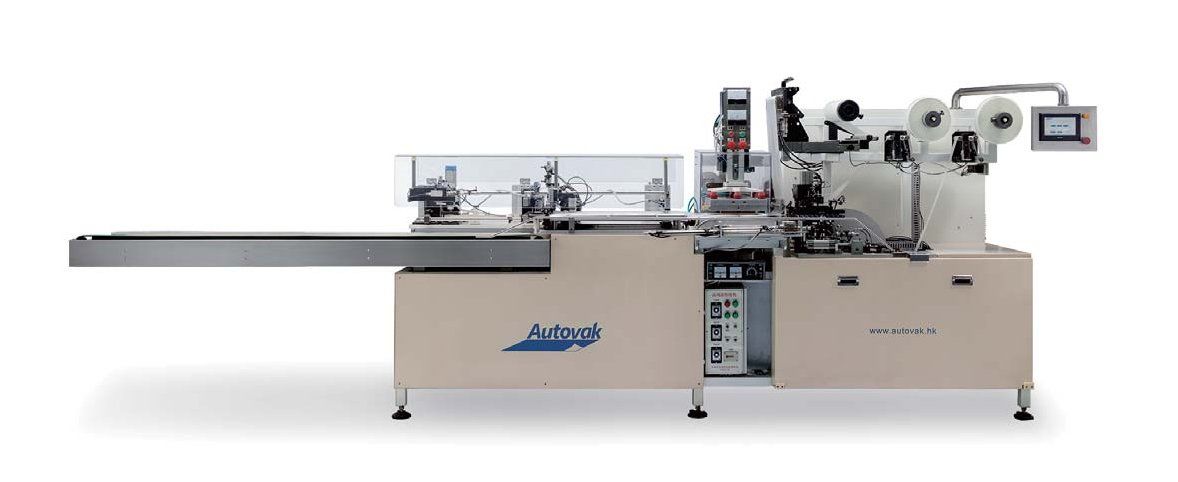

Drainage Bag Packaging Line
Drainage Bag Packaging Line
Technical specifications
| Manufacturer | AUTOVAK |
| Dimensions | 5200 mm x width 1600 mm (incl. high-frequency generator and water temperature oil heater) x height 1800 mm |
| Weight | ca. 1000 kg |
| Power supply | Three-phase 380 V + N + PE max. power 11 kW |
| Compressed air supply | Pressure 6 bar, min. 300 L/min |
| Product size | max. 300 mm x 300 mm |
| Function | Manufacturing/packaging in anti-reflux and outlet drainage bags |
| Production speed | up to 20 cycles/min (up to 1200 cycles/h) |
| Material for bags | Thickness of PVC bag body 0.1 - 1 mm, max. width 300 mm, max. diameter of coil 300 mm |
| Material for check valve | Thickness 0.1 - 0.5 mm, max. width 45 mm, max. coil diameter 200 mm |
| Controls | Omron |
| Pneumatic system | SMC |
| Electrical switch, breaker, etc. | Schneider |
| High frequency generator | Domestic |
| Price | on request >> |
* Our prices are ex works plus VAT. Subject to prior sale.
